ACCESSORIES · ANTENNAS
Choose radio antennas for handhelds, vehicles and repeaters: gain, cable loss, connectors and 400–470 MHz tuning.
Quick answer
The antenna is the part of the radio system that turns electrical power into a radio wave. It is also the part most often chosen last, after the radio and the repeater. That is backwards: a good radio with a poor antenna can underperform a modest radio with a good antenna.
This page covers the antenna types, the gain-versus-loss trade-off and the installation details that decide whether the coverage plan survives contact with the building.
| Type | Best for | Key trade-off | Typical users | Install note |
|---|---|---|---|---|
| Stubby handheld antenna | Compact handhelds | Short and convenient; lower gain | Hotel, retail, office | Keep the original connector and length |
| Whip handheld antenna | Longer range on foot | Longer; can snag | Security, site teams | Use a flexible whip, not a rigid rod |

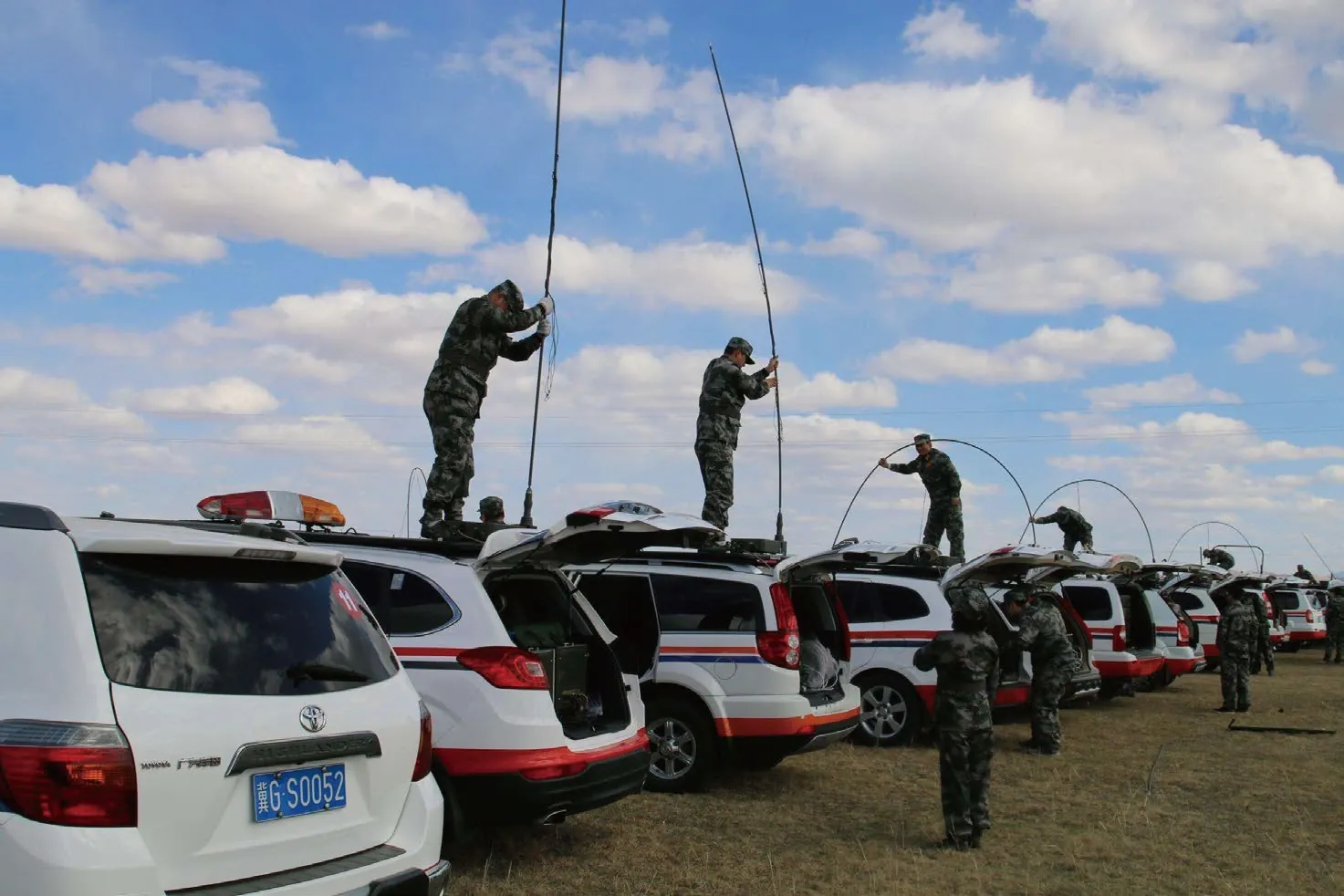

| Vehicle antenna | Cars, trucks, forklifts | Needs a ground plane and a clean mount | Fleets and drivers | Avoid mounting next to metal structures |
| Base / repeater antenna | Rooftop or mast coverage | High gain; needs a stable mast | Hotels, campuses, repeater sites | Plan the cable route and lightning protection |
| Portable repeater antenna | Temporary sites and events | Quick to deploy; lower height | Construction, events | Use a mast or tripod, not a fence post |
| Radio / system | Typical connector | Note |
|---|---|---|
| Analog handheld | SMA / BNC | Confirm male/female and band |
| DMR handheld | SMA | Keep the original antenna for IP rating |
| Vehicle radio | SO-239 / N-type | Use low-loss coax and a proper ground |
| Repeater / base | N-type | Plan duplexer, cable and lightning protection |
| PoC terminal | Internal antenna | Do not open or modify the housing |
A mismatched antenna can damage the transmitter. Confirm the band and connector before powering up.
Doubling transmitter power adds about 3 dB. Raising the antenna above the clutter, or replacing a lossy cable with a low-loss one, can add far more. The antenna is also the only part of the system that shapes where the energy goes.
A high-gain antenna concentrates energy in a direction. If the coverage area is below the antenna or behind it, a high-gain model can be worse than a simple omni antenna.
Every metre of coax loses signal. A 6 dB gain antenna connected with 5 dB of cable loss delivers only about 1 dB more than a 0 dB antenna with the same cable. At UHF, thin cable loses more, so the cable choice can matter as much as the antenna.
Calculate the system: antenna gain minus cable loss minus connector loss. A modest antenna with short, thick coax often beats a high-gain antenna with a long, thin cable.
For a vehicle antenna, the ground plane and mount matter as much as the antenna. A magnetic mount on a plastic panel or next to a roof rack performs poorly. For a base antenna, the mast height, cable route, grounding and lightning protection are part of the design.
For a handheld, use the original antenna unless the replacement is approved for the model and band. A longer antenna can improve range, but it can also damage the connector or compromise the IP rating.
The most common mistakes are using a VHF antenna on a UHF radio, choosing gain without calculating cable loss, mounting a base antenna too low, and using a damaged coax with water ingress. Each one can make a well-designed system look broken.
Test the antenna and cable before the final installation. A simple SWR check catches a bad connector or a damaged cable before it becomes a coverage complaint.
Click a question to see the answer
Sometimes, if it is approved for the model and band. A longer antenna can improve range, but it can also damage the connector or compromise the IP rating. Test before rolling it out.
No. Gain concentrates energy in a direction. If the coverage area is outside that pattern, a high-gain antenna can be worse than a simple omni. Cable loss also reduces the benefit.
It depends on the radio or repeater: SMA, BNC, N-type or SO-239 are common. Confirm the type and gender before ordering; a wrong connector stops the installation.
No. The antenna must be tuned to the band. A mismatched antenna can damage the transmitter and will perform poorly.
Very. At UHF, thin or long coax can lose more signal than the antenna gain adds. Use low-loss cable and keep the run as short as practical.
For a rooftop or mast antenna, yes. Plan grounding and surge protection as part of the installation, especially in areas with frequent storms.
